Pulse Generator - AquiNeuro

Description

An electronic device capable of generating programmable pulse trains to control external equipment such as optogenetic stimulators, cameras, and clock-driven devices.

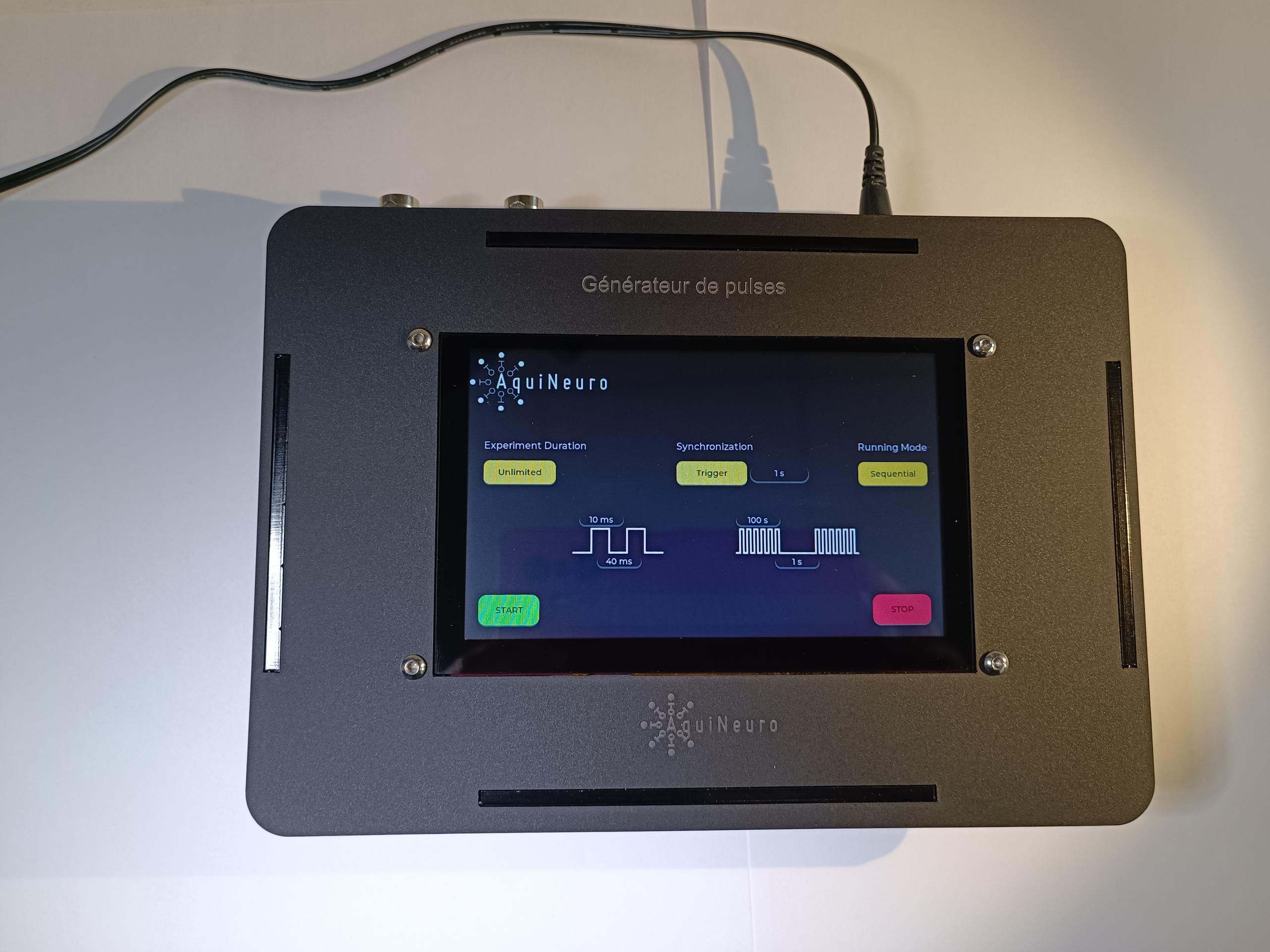

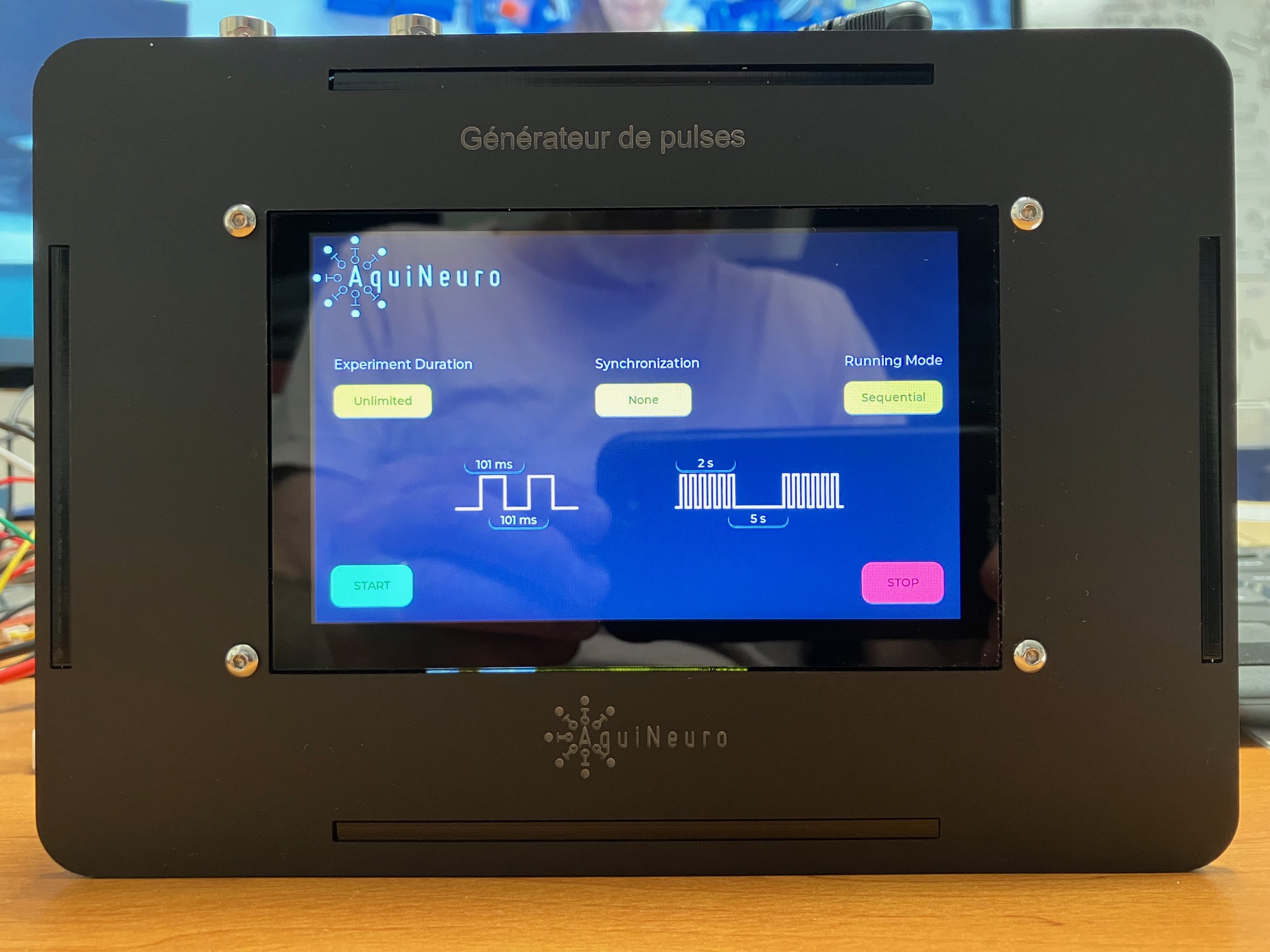

A touchscreen interface allows the experimenter to easily configure experimental parameters, including total experiment duration and stimulation patterns (pulse frequency, train duration, and inter-train intervals, all timings could be set with a resolution of 0.1ms).

The pulse generator output can also be conditioned by an external input signal, which may be used as a trigger or gating signal, enabling synchronization with other devices or experimental events.

Technical Specifications

Power supply voltage (Direct Current) 5 V
Input voltage range 3 to 5 V
Output voltage 3.3 V
Temporal resolution 100 μs
Pulse Triggering delay 10 μs
Maximum selectable experiment duration 59 min
Free-run minimal pulse duration 100 μs
Operating temperature range 0 to +40 °C
Storage temperature range -10 to +60 °C
Screen size (diagonal) 5 inch (64.8x108mm)
Screen resolution 480 (H) x 800 (W) RGB pixels
Back-light brightness 175 cd/m2
Touchscreen Resistive

Customisation possible
